日本KAKUTA大阪角田兴业快速夹HH150/No.HH150
发布时间：2024-12-31
日本KAKUTA大阪角田兴业快速夹HH150/No.HH150
日本KAKUTA大阪角田兴业快速夹HH150/No.HH150

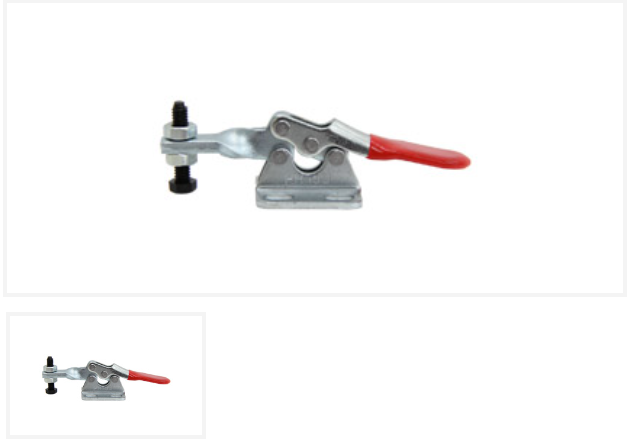

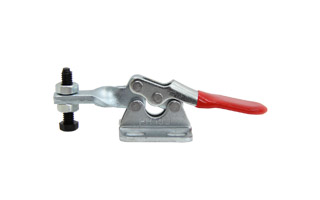

No.HH150 (Hold down clamp (Horizontal Handle))
CAD data
| Category | Hold down Clamp |
|---|---|
| Model Number | No.HH150 |
| Weight | 25g |
| Holding Capacity | 0.27kN(27kgf) |
| Material | Steel（SPCC） |
| Mounting Method | Flange Base |
| Surface finish | Trivalent Chromate |
●Feature and Application
A toggle clamp is designed to hold a workpiece by one-action operation after initial setting.
It is easy to introduce and low cost compare with air or hydraulic.
Optimal for repetitive work.
For inspection, welding, assembly, machining and press fit.
You can use for woodworking and DIY.
●Caution
The holding capacity is for reference. Max. value is by using hex bolt.
The holding capacity will decrease toward the tip of clamp arm.
Do not give the shock, vibration and internal pressure which causes a failure.
Caution to pinch the fingers.
