日本松下Panasonic电抗器DV0P228/DV0P224/DV0P4220/DV0P224/DV0PM20042
发布时间：2025-07-04
日本松下Panasonic电抗器DV0P228/DV0P224/DV0P4220/DV0P224
Part Number | DV0P228 |
|---|---|
Product | Reactor |
Product Name | Reactor |
*Specifications and design of the products are subject to change without notice for the product improvement.
Spec Detail
Specifications and design of the products are subject to change without notice for the product improvement.
| Item | Specifications |
|---|---|
| Part Number | DV0P228 |
| [Remarks] | When using a reactor, be sure to install one reactor to one servo driver. |
| Specification | 2 mH |
| Applicable Family / Series | AC Servo Motors MINAS A7B Series MINAS A7N Series MINAS A6 Series MINAS A5 Series MINAS E Series MINAS A4 Series MINAS AIII Series MINAS S Series MINAS A Series |
scroll
scroll
scroll
Wiring
Specifications and design of the products are subject to change without notice for the product improvement.

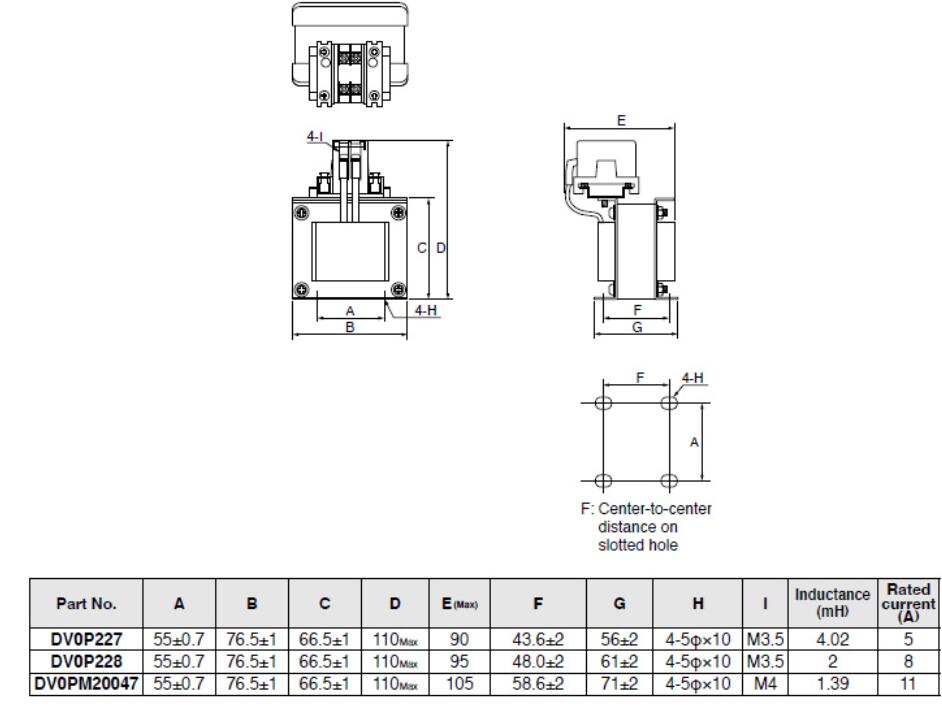

Dimensions
Specifications and design of the products are subject to change without notice for the product improvement.
[Unit: mm]
