Product Number	HG-C1100-P
Part Number	HG-C1100-P

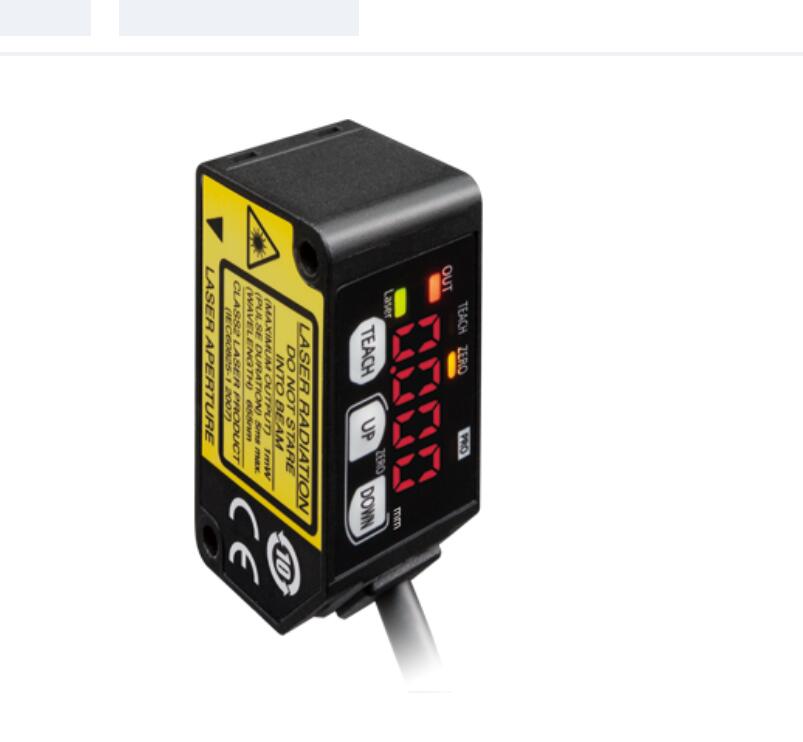

Product	CMOS type Micro Laser Distance Sensor
Details	Measurement center 100mm 3.937 in type

Spec Detail

Specifications and design of the products are subject to change without notice for the product improvement.

Item	Specifications
Product Number	HG-C1100-P
Part Number	HG-C1100-P
Products Name	CMOS type Micro Laser Distance Sensor
Product details	Measurement center 100mm 3.937 in type
The price of the product	Please contact our office
Applicable regulations and certifications	CE Marking (EMC Directive, RoHS Directive), UKCA Marking (EMC Regulations, RoHS Regulations), FDA Regulations, UL/c-UL Certification (Note) : The UL/c-UL certified products have been shipped since April, 2017.
Measurement center distance	100mm 3.937 in
Measuring range	±35mm 1.328 in
Repeatability	70 μm 2.756 mil
Linearity	±0.1%F.S.
Temprerature characteristics	0.03% F.S. /℃
Light source	Red semiconductor laser Class 2 (IEC / EN/ JIS / GB / KS / FDA) / Class II (FDA)(Note) Max. output: 1mW emission peak wavelength: 655nm 0.026 mil (Note) This product complies with the FDA regulations (FDA 21 CFR 1040.10 and 1040.11) in accordance with FDA Laser Notice No. 56, except for complying with IEC 60825-1 Ed. 3.
Beam diameter	ø120 μm 4.7241 mil approx. (Note) This is the size in the measurement center distance. These values were defined by using 1 / e² (13.5% approx.) of the center light intensity. Due to leak light outside the specified area, the reflectance around the detecting point may be higher than at the point and this may affect the measurement value.
Supply voltage	12 to 24V DCplus or minus 10% Ripple P-P 10%
Current consumption	40 mA or less (at 24V DC supply voltage) 65 mA or less (at 12V DC supply voltage) Note : Specifications have been changed from shipment in August, 2016. For shipment before July 2016 ： 40 mA or less (at 24 V DC supply voltage), 60 mA or less (at 12 V DC supply voltage)
Control output	PNP open-collector transistor - Maximum source current: 50mA - Applied voltage: 30V DC or less (Between control output to +V) - Residual voltage: 1.5V or less (At 50mA source current) - Leakage current: 0.1 mA or less
Control output:Output operation	Either Light-ON or Dark-ON
Control output:Short-circuit protection	Incorporated (Auto reset type)
Analogue output : Analog voltage output	• Output range: 0 to 5 V (at alarm: +5.2 V) • Output impedance: 100Ω
Analogue output : Analog current output	• Output range: 4 to 20mA (at alarm: 0mA) • Output impedance: 300Ω or less Note : Analog current output has been added from shipment in August 2016.
Response time	Switchable between 1.5 ms / 5 ms / 10 ms
External input	PNP non-contact input - Input conditions Invalid: 0 to +0.6V DC or Open Valid: +4 to +V DC - Input impedance: 10kΩ approx.
Pollution degree	2
Operating altitude	2,000 m 6561.680 ft or less
Protection	IP67 (IEC)
Ambient temperature	-10 to +45 ℃ -14 to 113 ℉ (No dew condensation or icing allowed), Storage: -20 to +60 ℃ -4 to 140 ℉
Ambient humidity	35 to 85% RH, Storage: 35 to 85% RH
Ambient illuminance	Incandescent light: 3,000 ℓx or less at the light-receiving face
Vibration resistance	10 to 55 Hz (period: 1 min.) frequency, 1.5 mm 0.059 in double amplitude in X, Y and Z directions for two hours each
Shock resistance	500 m/s² acceleration (50 G approx.) in X, Y and Z directions three times each
Cable	5-core composite cable, 2 m 6.5617 ft long
Cable extension	Extension up to total 10 m 393.701 ft is possible with 0.3 mm², or more, cable.
Material	Enclosure: Aluminum die-cast Front cover: Acrylic
Weight	Net weight: 35 g approx. (without cable), 85 g approx. (including cable)

scroll

Accessories (Option)

	Product number	Part number	Product	Details	Product name
	MS-HG-01	MS-HG-01	-	-	Mounting bracket
