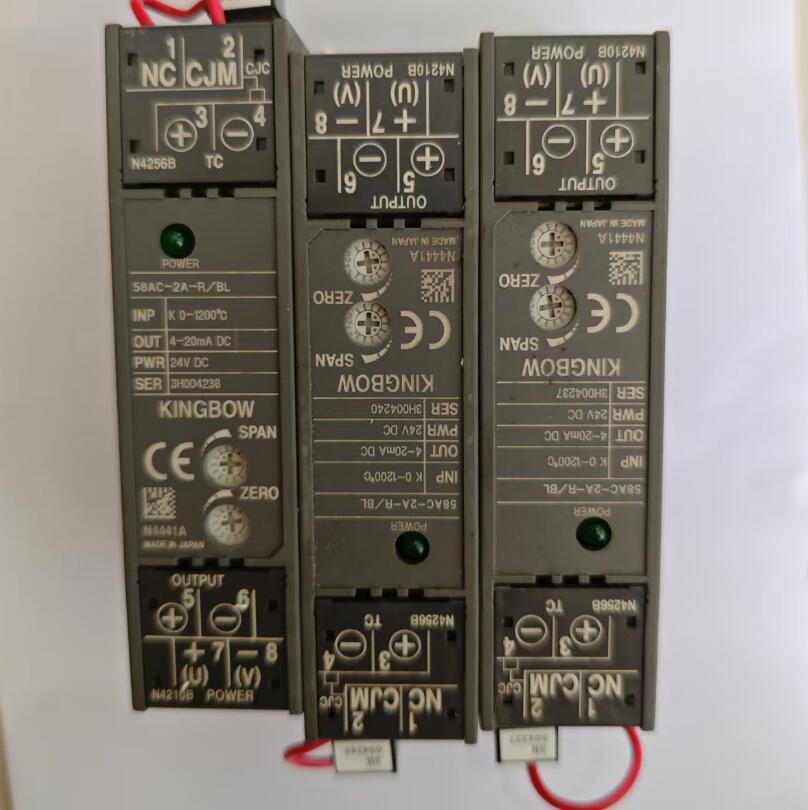

58AC-8A-R/BL KINGBOW温度变送器58AC-2A-R/BL
发布时间：2025-09-17
58AC-8A-R/BL KINGBOW温度变送器58AC-2A-R/BL
58AC-8A-R/BL KINGBOW温度变送器58AC-2A-R/BL
| Model | Function |
| 58AS | DC signal transmitter |
| 58AP | Current loop supply |
| 58AC | TC transmitter |
| 58AR | RTD transmitter |
| 58AC2 | TC signal isolators,loop powered |
| 58AR2 | RTD signal isolators, loop powered |
| 58AN | DC signal transmitter , loop powered |
| 58AT | Potentiometer transmitter |
| Products | 58A Series |
Input | DC Voltage: -300 +300VDC DC Current: 0-50mA (Specify available) RTD: Pt100,Pt50,Pt10,Ni508.4,Cu50,Cu100 (Specify available) T/C: (PR),K,E,J,T,B,R,S,N (Specify available) Potentiometer: Up to 10kΩ |
| Input resistance | Current: Max.1000Ω (Specify available) Voltage: Min.10kΩ T/C:30 KΩ |
| Output | DC: -10- +10VDC (Specify available) 0 -20mA (Specify available) |
| Load resistance | DC Current: Max.550Ω DC Voltage: Min.500Ω |
| Power supply | 24VDC,11-27VDC,85-264VAC,110VDC |
| Construction | Terminal block |
| Housing material | Flame-resistant resin |
| Dielectric strength | 2000VDC@1minute 1500VAC@1minute |
| Accuracy | ± 0.10%/F.S See detail spec. data sheet |
| Operating data | Temperature:-5 +55 Humidity:0- 90%RH |
| Display | - |
| Adjustment | Front panel adjustments ± 2% for Zero and Span |
| Mechanical Connection | M3.5 screw terminals |
| Approvals | CE |
| Mounting | 35mm DIN rail |
| Dimensions | W25 × H94 × D41mm |
| Weight | 60g |
