■Employing poppet structure for both main valve and pilot valve, this product has achieved optimal resistance to drains and dusts.
■Incorporated exhaust pressure protection system ensures reliable operation under any piping conditions.
■Valve system is resistant to transient phenomena at switching, thus decreases air loss.

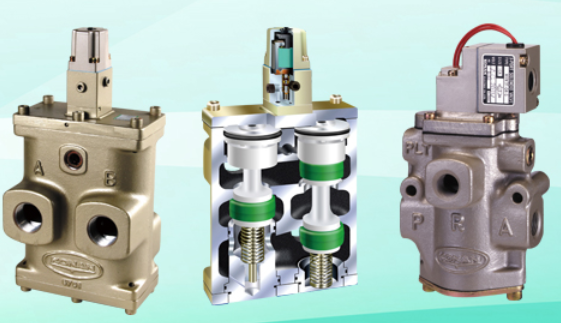

MVW7F-S,MVW7FR-S　3-Port Large-Capacity Poppet-Type Solenoid Valves
PDF（Catalog）
2.78MB
MVW7F-S,MVW7FR-S　3-Port Large-Capacity Poppet-Type Solenoid Valves
■MVW7F（Normally closed）MVW7FR（Normally open）
■Poppet valve system, Pilot type
■Direct Piping Type
■Port size：Rc3/8 , Rc1/2 , Rc3/4 , Rc1 , Rc1 1/4 , Rc1 1/2 , Rc2
Model code Normally closed MVW7F-04-S MVW7F-08-S MVW7F-14-S
Normally open MVW7FR-04-S MVW7FR-08-S MVW7FR-14-S
Port size Rc 3/8 Rc 1/2 Rc3/4 Rc1 Rc 1 1/4 Rc 1 1/2 Rc2
Effective area of valve 70mm2 80mm2 200mm2 220mm2 700mm2 750mm2 800mm2
Operating pressure 0.2～0.7MPa
Proof pressure 1.05MPa
Ambient temperature -20～50℃（Remove moisture perfectly from the fluid to prevent freezing when used at 5℃ or lower.）
Solenoid Rated voltage AC100V,110V,125V,200V,220V(50/60Hz) DC24V,48V,100V,110V
Votage fluctuation tolerance ±10% of applicable voltage
Temperature rise ≦80℃
Insulation JIS C 4003 class B
Power consumption Refer to catalog for details.
Response time ≦0.05 sec ≦0.05 sec ≦0.18 sec
Operating frequency Max. 2/s
Installation position Free
Mass 1.1kg 1.7kg 6.1kg
●Refer to catalog for details.
