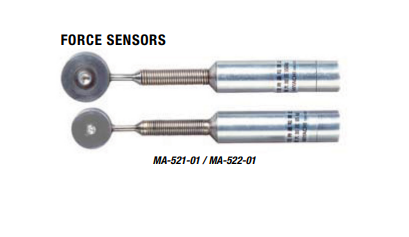

日本amada米亚基压力传感器MA-522-01
日本amada米亚基压力传感器MA-522-01
仕様／Specifications型式Model No. MA-520 MA-521 MA-522定格荷重Rated load 9.8daN (10kgf) 98daN (100kgf) 980.6daN (1000kgf)有効測定範囲Effective measurement range0.2daN–9.8daN(0.2kgf–10kgf)2.0daN–98daN(2.0kgf–100kgf)20daN–980.6daN(20kgf–1000kgf)許容荷重Acceptable load定格荷重の 1.5 倍1.5 times of rated load測定精度Measurement accuracy定格荷重に対して±3%±3% of rated load使用温度範囲Using temperature range 0 – +40°C外形寸法Externaldimensions本体全長Overall length of body約 170mmApprox. 170mm約 177mmApprox. 177mm検出部直径×厚さDiameter of sensorunit x thicknessφ25mm x 9mm φ33mm x 16mmケーブル長さCable length約 1000mmApprox. 1000mm質量(ケーブル、コネクタ含む)Weight (including cable and connector) 200g 250gオプション(6 章参照)Option (See Chapter 6.)同時加圧通電治具(A-04860-001)Jig for simultaneous force application andwelding (A-04860-001)－
