日本IKO直线性导轨滑块MESG20C1HS2
发布时间：2024-05-08
日本IKO直线性导轨滑块MESG20C1HS2
日本IKO直线性导轨滑块MESG20C1HS2
日本IKO直线性导轨滑块MESG20C1HS2
日本IKO直线性导轨滑块MESG20C1HS2

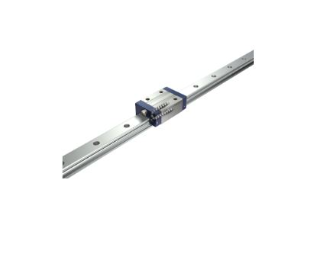

Low-Profile Linear Guide Assembly (MESG20C1HS2)
Standard/Wide/Wide Long/Long/Short Carriage, Interchangeable, High Grade
Part Number: MESG20C1HS2
Linear Way E is a linear motion rolling guide with a compact slide unit that provides endless linear motion over a track rail. Two rows of steel balls come in contact with the raceway surface at four points, enabling stable accuracy and rigidity, even in applications where loads have variable direction and size, or complex loads are applied. This compact, highly versatile universal series is available in many shapes and sizes.
Configured Specifications
| Set/Single Item | Block Only | Block Type | Block Long Type |
|---|---|---|---|
| Number of Blocks | 1 | Rail Type | Standard |
| Rail Width(mm) | 20 | Mounting Height H(mm) | 28 |
| Material | Carbon Steel | Rail Length L(mm) | - |
| Preload | Standard | Accuracy | High Grade |
| Ball Arrangement | Standard | Retainer | Available |
