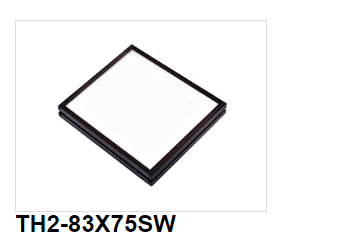

This Light Unit emits white light and measures 95 x 87 x 15 mm (width x depth x height).
The light-emitting surface measures 83 x 75 mm.
High-luminance type.
Product Details
LED color White Correlated color temperature 5,800 K typ. Dimensions W 95 mm x D 87 mm x H 15 mm Input voltage 24VDC Power consumption 16 W max. Polarity & signal 1: (+), 2: NC, 3: (-) Cable length 300 mm Case material Aluminum alloy, resin Input connector SMR-03V-B Conformed standards CE, UKCA, RoHS, IEC 62471（Exempt） Operating temperature and humidity Temperature: 0 to 40°C, Humidity: 20 to 85%RH (no condensation) Storage temperature and humidity Temperature: -20 to 60°C, Humidity: 20 to 85%RH (no condensation) Cooling method Natural air cooling Weight 140 g max. Accessories User Manual Notes The correlated color temperature is the same as that of the conventional product.
TH2: 5,800 K (A value for the Light Unit), Conventional products TH: 6,600 K (A value for individual LEDs)
