P-G-UL,UM,UH-10,12-10U日本大生过滤器G-ISH-12A-100W-U
发布时间：2024-07-01
P-G-UL,UM,UH-10,12-10U日本大生过滤器G-ISH-12A-100W-U
日本大生过滤器G-ISH-12A-100W-U
日本大生过滤器G-ISH-12A-100W-U
日本大生过滤器G-ISH-12A-100W-U
日本大生过滤器G-ISH-12A-100W-U

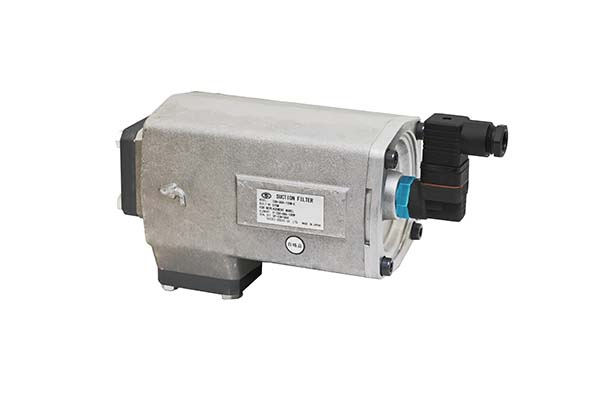

ISH
| Type | Case type suction filter |
|---|---|
| Application | This filter protects the hydraulic pump by preventing the circulation of line contamination from the reservoir tank. |
| Features | ・The horizontal shape allows installation in areas without taking upward space. ・Horizontal extraction type element. ・Used for piping circuits where air infiltration is not a problem since the design does not allow for easy air extraction. |
Specifiations
| Item | Standard Spec. | Option |
|---|---|---|
| Corresponding fluid | Mineral oil | Phosphate ester oil, water glycol oil |
| Maximum working pressure | -0.1-0.5MPa | - |
| Indicator | Visual type | Select from electric contact type, electric contact type (micro capacity) |
| Relief valve (Bypass) | Equipped | |
| Connection | Weld flange type | Can modify with Rc threaded flange type |
| Magnet | n/a | Installation optional |
