All-in-one Series

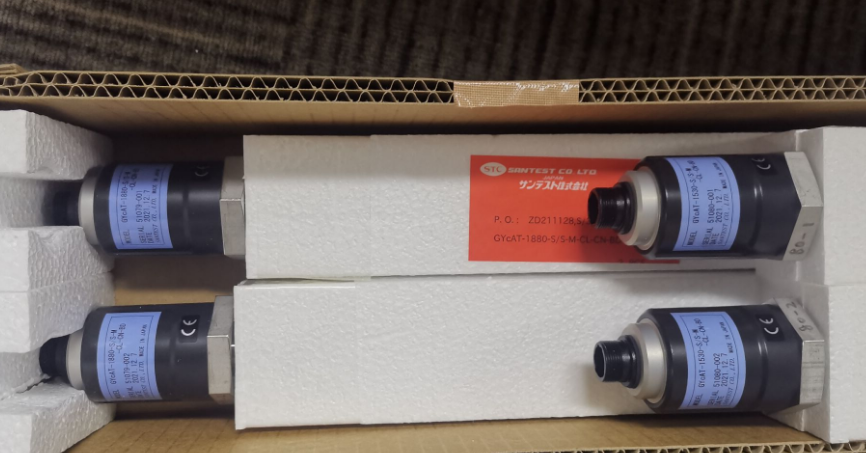

GYcAT Probe.

Standard analogue output

You can get a voltage or current analog signal proportional to magnet
position only by applying a 24VDC power supply directly to GYcAT.
It has alarm output and is equipped with noise cancellation functions.
By the option, it is available with the high speed sampling, SRT, and
high temperature (rod parts only).

　・ CE marking
　・ Noise cancellation

　( Created on Feb. 2. 2023 )

Specifications

・The above mentioned accuracy applies to sensors with an effective stroke of 300mm or more.
・The specification of stroke less than 300mm is equal that of stroke 300mm.
(*) Sampling freq. is available to Max. 8kHz by option. It depends on the total rod length
　 (shows in Model ⑧), and the consumption current increases.

Model No.

① Effective stroke
　　15〜3500mm

② Head dead zone
　　50: 50mm (Std.)
　　□: □mm ( option ) ( specified by customers )
　 ・Possible Min. length depends on the selected magnet or float.

③ Tip dead zone
　　□: 70mm/ 90mm/ 100mm (Std.)

　□: □mm ( option ) ( specified by customers )
　　・Possible Min. length depends on the selected magnet or float.

④ Thread / Rod diameter
　　M :M24xP1.0, rod Φ10(Std.)
　　N :M18xP1.5, rod Φ10
　　U :3/4-16UNF-3A, rod Φ10
　　M8 :M24xP1.0, rod Φ8
　　N8 :M18xP1.5, rod Φ8
　　U8 :3/4-16UNF-3A, rod Φ8
　　M14 :M24xP1.0, rod Φ13.8

⑤ Associated magnet or float

　　・Selecting magnet from page 116〜118(B)．
　　・Please consult our factory in case of requesting special magnet or float.
　　・This model code means only specifying associated magnet or float.
　　・Ordering magnet or float individually.

⑥ Cable connection
　　CN : connector
　　△G□F : pigtail / cable end : free
　　△G□A : pigtail / cable end : with connector for relay
　　　　(□ : cable length(m)、Max.10m)(*)
　　　　(△ : cable type
　　　　　　　S:standard, H:high temp. cable, R:robot cable, UL : cUL cable)

　＜Water proof option＞(recommendation : pigtail (WP3G))
　　WPCN : submersible connector type
　　WP3G□F : pigtail / cable end : free
　　WP3G□A : pigtail / cable end : with connector for relay
　　　　(□:cable length(m)、Max.10m)(*)
　　・P113 shows the detailed information
　　(*) In case of using extension cable
　　　Voltage output : sensor cable (m) + extension cable (m) ≦ 10m
　　　Current output : sensor cable (m) + extension cable (m) ≦ 100m
　　　・Please confirm extension cable on page 120〜122.
　　　・Ordering loose mating connector individually.

⑦ Position output
　　AD :0〜10V ( When magnet moves toward tip, output increase )
　　AR :10〜0V ( When magnet moves toward tip, output decrease )
　　BD :4〜20mA ( When magnet moves toward tip, output increase )
　　BR :20〜4mA ( When magnet moves toward tip, output decrease )
　　CD□□ :bipolar output (-□V〜+□V )
　　　　　　　( for example CD10 :-10V〜+10V )
　　CR□□ :bipolar output (+□V〜-□V)
　　　　　　　( for example CR05 :+5V〜-5V )

⑧ Option
　　blank:without option
　　12S:Power supply +12VDC (total rod length L ≦630mm)
　　　　output:0〜5V or 4〜20mA(load:Max.500Ω)
　　SRT:SRT option
　　(⑥ cable connection:pigtail type only (SG□) )
　　H0:probe rod 100°C
　　X2:2kHz sampling (total rod length : Max.750mm)
　　X4:4kHz sampling (total rod length : Max.450mm)
　　X8:8kHz sampling (total rod length : Max.300mm)

　　・Please confirm the details of options on page 112〜114.

Dimensions

Probe		Pigtail type		Cable

・Connector : Sanwa SNW-1607-PCF(Material:zinc alloy fluoroplastic)
・Suitable cable diameter : Φ6.6-Φ7.5, Wire size:Less than 0.5mm2
