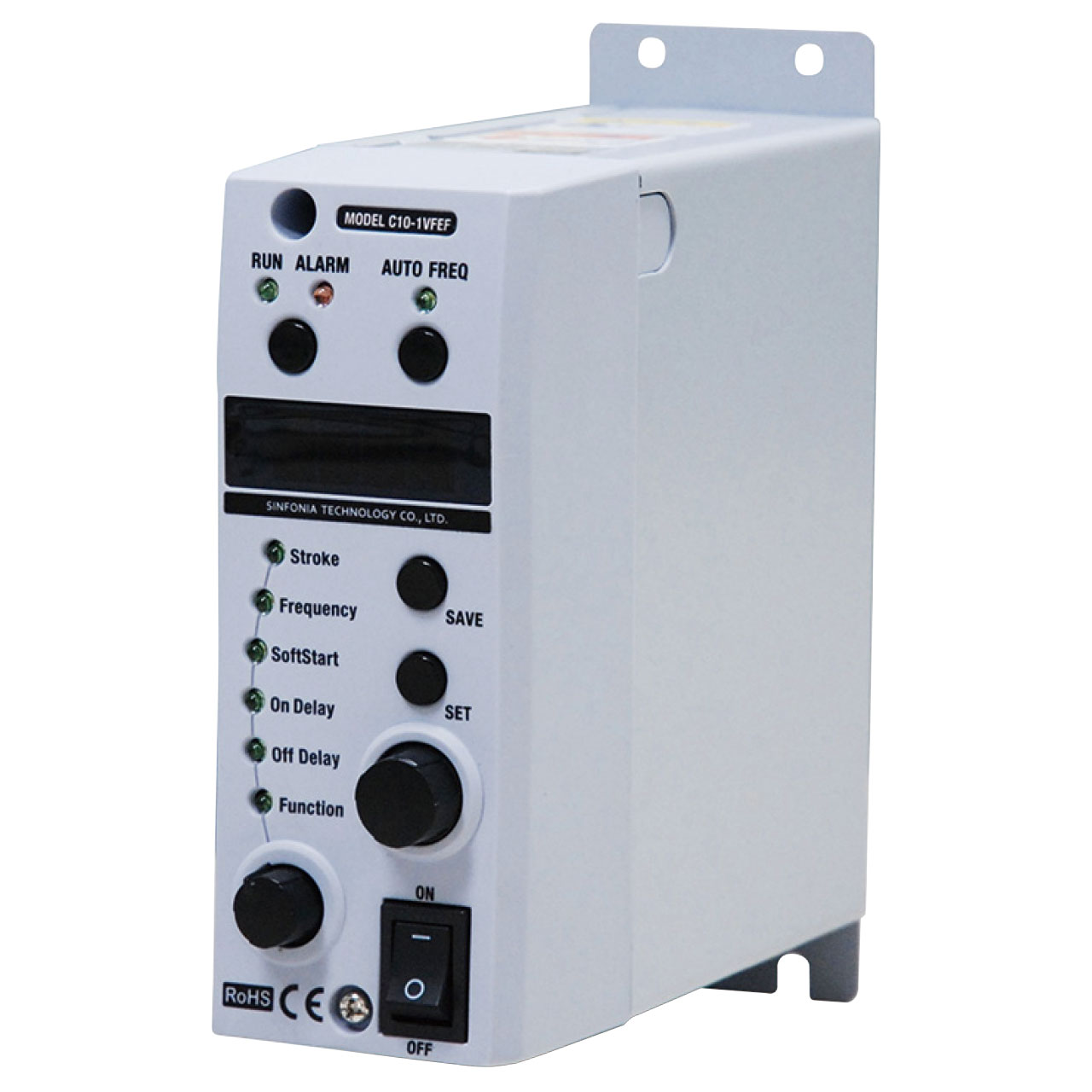

C10 Series
感谢您关注我们的产品，如以下图片和型号不符请联系我们咨询，谢谢！
C10 Series For General-purpose Parts Feeders/For Mini Parts Feeders
Digital control operated in ‘Analog’ way
A completely new type of digital controller that can be used with the full line-up of feeders, from high frequency mini parts feeders to small electromagnetic feeders and large size models. With ‘analog-style’ operation it can be adjusted very swiftly.
With an auto-tuning function that eliminates the need for frequency adjust-ment, and convenient digital settings and display, drive units can be operated to their full potential.
Features
Auto-tuning function eliminates leafspring adjustment (C10-1VFEF, 3VFEF, 5VFEF)
This digital equipment has a special advanced vibration frequency auto-tuning function. It automatically tracks resonance point changes not only from changes to input volume of workpieces, but also from mechanical changes over time, to deliver optimal vibration at all times. No leaf-spring adjustment or even frequency adjustment is necessary, thereby boosting operation efficiency and saving energy.Digital setting and display makes settings easy to manage
Amplitude, drive frequency, output voltage notches are all set and displayed digitally, for easy management.
Constant amplitude control matched to workpieces or materials (C10-1VFEF, 3VFEF, 5VFEF)
Amplitude can be set digitally, and an amplitude sensor allows drive at constant amplitude suited to the workpieces under conveyance.Easy-to-use panel design
The frequency, voltage, soft start, on delay and off delay settings needed for parts feeder adjustment are located on a control panel. A rotary encoder allows ‘analog-style’ setting input to be changed to digital values.
Many external control functions
Choice of four speeds can be made by external signal. Two-step control through external regulating resistance. External volume adjustment via a DC4-20mA signal is also possible.CE Marking conformed product
Required to be installed inside the control box treated with Noise filter and IP4X to make product comply to CE Marking.
Dimensions

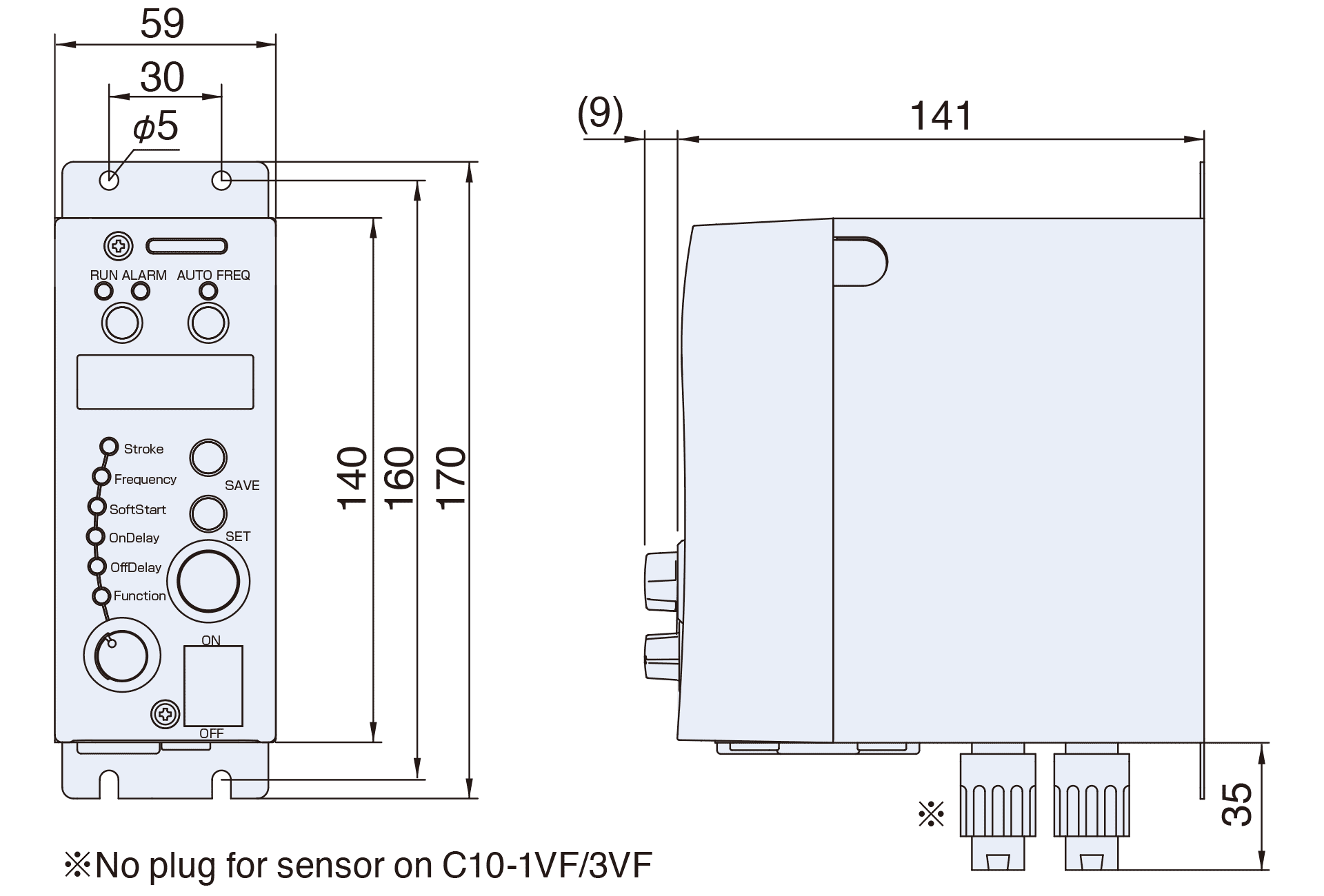

C10-1VF/1VFEF/3VF/3VFEF
Unit: mm

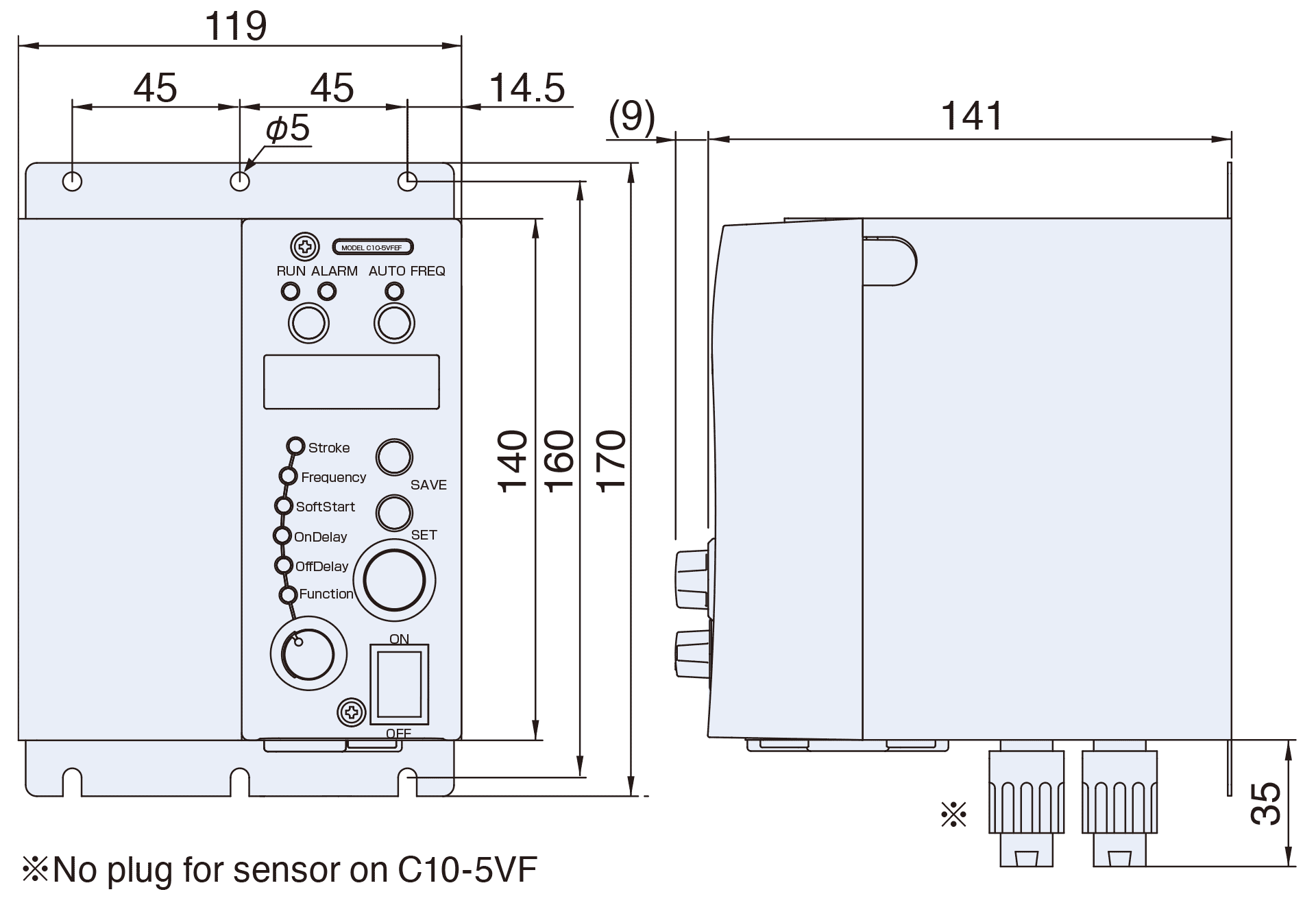

C10-5VF/5VFEF
Unit: mm

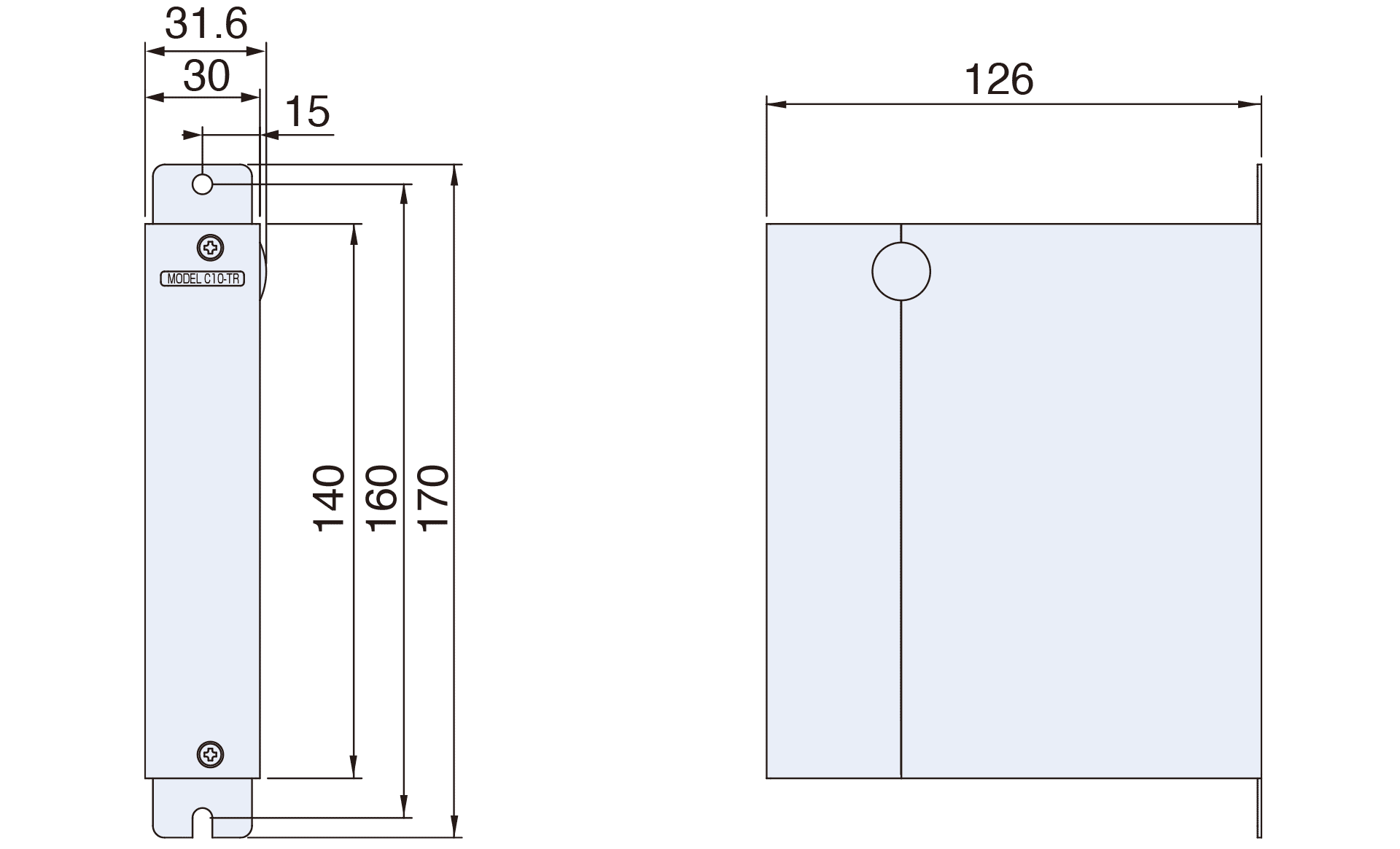

C10-TR
Unit: mm
By using a C10-TR power transformer unit with a standard controller, output voltage can be boosted to run an AC 200 V parts feeder from an AC 100 V power source. This is not applicable for C10-5VF (EF).
Specifications
| Model | C10-1VF | C10-3VF | C10-5VF | C10-1VFEF | C10-3VFEF | C10-5VFEF | |
|---|---|---|---|---|---|---|---|
| Input power source | AC100~120V±10%，AC200~230V±10%，50/60Hz | ||||||
| Output | Control system | PWM system | |||||
| Voltage | 0~190V (for AC 200V input) 0~95V (for AC 100V input) Automatic switching depending on input power source. Optional unit C10-TR allows output voltage in 0~190V range (Except C10-5VF (EF)) even with AC100V input | ||||||
| Vibration frequency | Half wave: 45~90Hz, Full wave: 90~180Hz Intermediate wave: 65~120Hz, High frequency: 180~360Hz | ||||||
| Max. current | 1A | 3A | 5A | 1A | 3A | 5A | |
| Operating modes | Constant Voltage mode | Frequency, output voltage set manually | |||||
| Constant amplitude mode | - | Constant amplitude control at set frequency | |||||
| Auto-tuning mode | - | With frequency auto-tuning, constant amplitude control requires no amplitude setting | |||||
| Additional features | Speed selector | Selection of up to 4 amplitude settings by means of external signal | |||||
| Start/stop control | Start/Stop control by external signal | ||||||
| Output signal | Output signal synchronized to parts feeder operation | ||||||
| Soft start | Start-up time 0.2~4.0 secs | ||||||
| On/Off delay | - | Delay 0.2~60secs | |||||
| Sensor power source | - | For DC 12V, max. 80mA 3P power plug | |||||
| Synchronized power output | Function | - | Power output synchronized to parts feeder operation (RUN) | ||||
| Control system | - | On/Off control | |||||
| Output Voltage | - | As power source input to controller | |||||
| Max. current | - | 2A | |||||
| Others | Noise tolerant Voltage | Above 1,000V | |||||
| Ambient temperature | 0~40℃ | ||||||
| Ambient humidity | 10~90% (no condensation) | ||||||
| Compatible equipment | ER-25B EA-15, 20 LFBR-350B, 450B, 600B LFB-300, 400, 550 LFG-600, 750, 900 ME-08C, 14C HME-08C, 14 LFB-02, 04 HLFB-02, 04C LF-02, 04 MF-04C, 15C HSE-14 | ER-30B, 38B, 45B EA-25, 30, 38, 45 LF-30, 40 | ER-55B, 65B, 75B | ER-25B EA-15, 20 LFBR350B, 450B, 600B LFB-300, 400, 550 LFG-600, 750, 900 ME-08C, 14C HME-08C, 14 LFB-02, 04 HLFB-02, 04C LF-02, 04 MF-04C, 15C HSE-14 | ER-30B, 38B, 45B EA-25, 30, 38, 45 LF-30, 40 | ER-55B, 65B, 75B | |
Specifications above are applied for later than ver.4.
