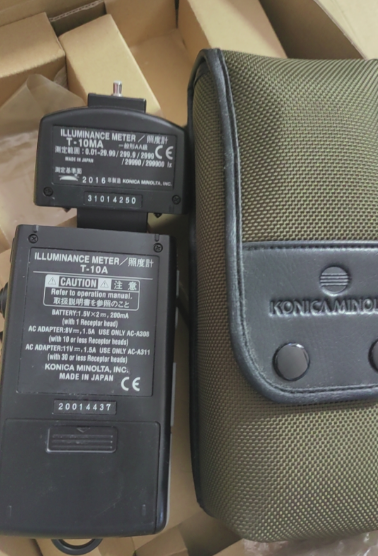

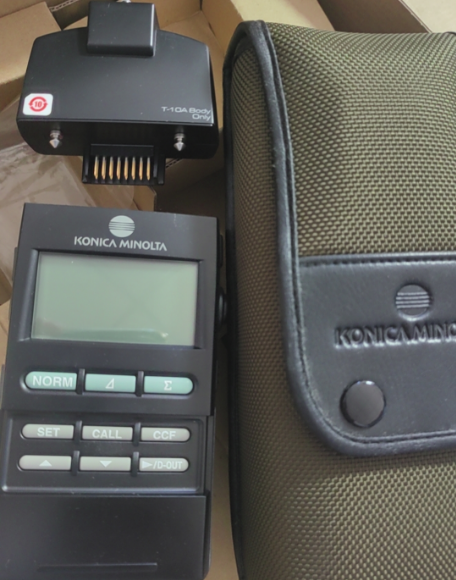

日本ILLUMINANCE METER照度計T-10MA

T-10A / T-10MA / T-10WsA

A professional illuminance meter that provides accurate and traceable lux or fcd over a large measuring range. Can be used with a detachable receptor head for remote measurement or in multi-point mode by connecting up to 30 receptors to cover a large area. A custom version with a small sensor connected by a 1m connecting cable and a waterproof version with a 5 or 10 meter connecting cable are also available.

• Compact, lightweight and easy to use multifunctional Illuminance Meter

• Measurement range: 0.01 to 299,000 lx with automatic range switching

• Conforms to DIN 5032 Part 7 Class B

• Detachable receptor head for remote measurement

• Multi-point mode connecting up to 30 receptors to a single measurement head

• Small receptor head to measure illuminance in special situations

• Automatic zero adjustment for immediate measurement

• Measurement of Pulse modulated Light sources (PWM)

• Compact, lightweight and easy to use multifunctional Illuminance Meter with or without a mini receptor head for special applications

• A small, easy-to-use handheld illuminance meter, with a large measuring range of 0.01 to 299,000 lx, automatic range switching and a built-in backlit LCD screen. As a professional measuring instrument from Konica Minolta, the device conforms to international standards and can be calibrated each year to record traceable data.

• Although designed for portability and simplicity, the instrument can also be connected to AC Power and operated via PC connection, recording data directly into Excel for reporting and analysis. A single measuring instrument can be connected to up to 30 sensors to form a multi-point system for characterising lighting over a large area (requires additional measuring heads, accessories, AC power and PC connection).

• Main Features

• Official government testing

• ANSI Lumen measurement of Projectors

• R&D by illumination manufacturers

• Repair and maintenance in factories, offices, and hospitals

• Quality control by manufacturers of home-use lighting products

• Examination of commercial light sources

• Illuminance control in agriculture and forestry

• FEATURES




•

•
