A small, easy-to-use handheld illuminance meter, with a large measuring range of 0.01 to 299,000 lx, automatic range switching and a built-in backlit LCD screen. As a professional measuring instrument from Konica Minolta, the device conforms to international standards and can be calibrated each year to record traceable data.

Although designed for portability and simplicity, the instrument can also be connected to AC Power and operated via PC connection, recording data directly into Excel for reporting and analysis. A single measuring instrument can be connected to up to 30 sensors to form a multi-point system for characterising lighting over a large area (requires additional measuring heads, accessories, AC power and PC connection).

Main Features

Official government testing
ANSI Lumen measurement of Projectors
R&D by illumination manufacturers
Repair and maintenance in factories, offices, and hospitals
Quality control by manufacturers of home-use lighting products
Examination of commercial light sources
Illuminance control in agriculture and forestry

FEATURES

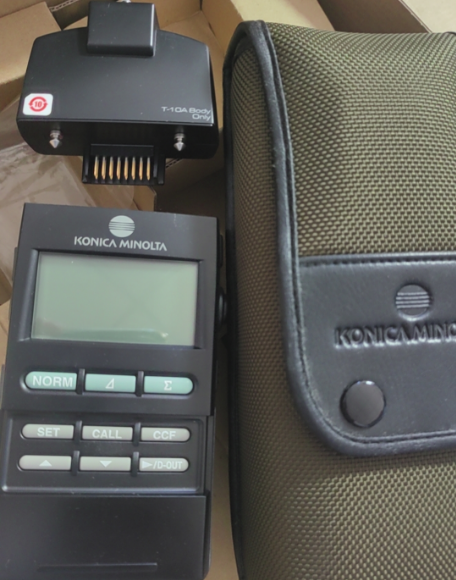

Illuminace Meter T-10A, compact, light-weight and easy to use with a standard receptor diffuser window of 25mm diameter

Illuminace Meter T-10A with removable receptors connected to each other using a LAN cable

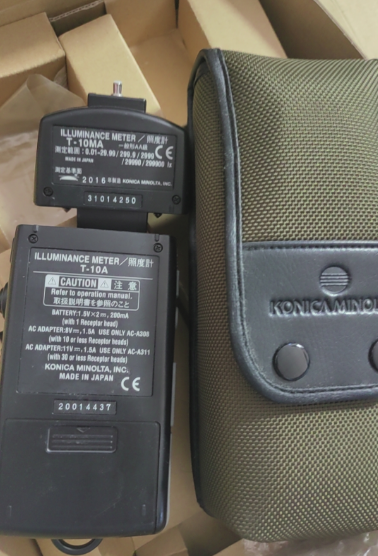

Illuminace Meter T-10MA, T-10WsA, T10WlA with cord length from 1m, 5m, and 10m respectively and mini receptor diffuser window of 14mm diameter

T-10A / T-10MA / T-10WsA

A professional illuminance meter that provides accurate and traceable lux or fcd over a large measuring range. Can be used with a detachable receptor head for remote measurement or in multi-point mode by connecting up to 30 receptors to cover a large area. A custom version with a small sensor connected by a 1m connecting cable and a waterproof version with a 5 or 10 meter connecting cable are also available.

Compact, lightweight and easy to use multifunctional Illuminance Meter
Measurement range: 0.01 to 299,000 lx with automatic range switching
Conforms to DIN 5032 Part 7 Class B

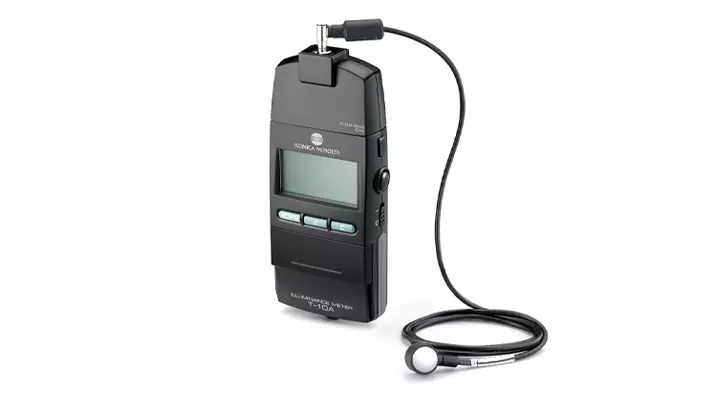

Detachable receptor head for remote measurement

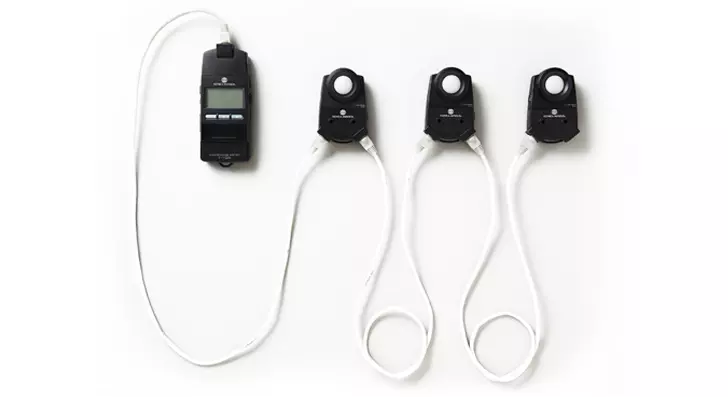

Multi-point mode connecting up to 30 receptors to a single measurement head
Small receptor head to measure illuminance in special situations
Automatic zero adjustment for immediate measurement
Measurement of Pulse modulated Light sources (PWM)
