日本CCS希希爱视光源HLV3-22SW-2C
发布时间：2024-07-29
日本CCS希希爱视光源HLV3-22SW-2C
HLV3-22RD-2C / HLV3-22SW-2C / HLV3-22BL-2C / HLV3-22GR-2C

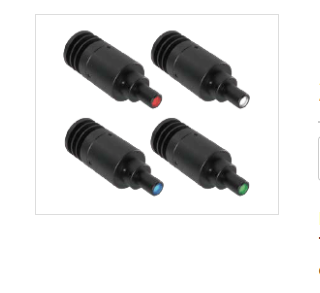

HLV3 Series Cylindrical Type(HLV3-22RD-2C, HLV3-22SW-2C, HLV3-22BL-2C, HLV3-22GR-2C).
This Light Unit emits LED light and has an outer diameter of 22 mm, a tip diameter of 8 mm, a light-emitting surface diameter of 6 mm, and a total length of 61 mm.
Product Details
| LED color | Red, White, Blue, Green |
|---|---|
| Peak wavelength | Red: 630nm typ, White: 5600K typ, Blue: 465nm typ, Green: 520nm typ |
| Dimensions | Outer diameter 22 mm, Tip diameter 8 mm, Total length 61 mm |
| Power consumption | Red: 2.0W, White: 2.4W, Blue: 2.6W, Green: 2.7W max. |
| Polarity & signal | 1: Signal, 2: (+), 3: (-) |
| Cable length | 300 mm |
| Case material | Aluminum alloy |
| Input connector | SMR-03V-B |
| Input current | 700 mA |
| Conformed standards | CE, UKCA, RoHS, IEC 62471(Red: Exempt, White: Mod risk, Blue: Mod risk, Green: Low risk) |
| Operating temperature and humidity | Temperature: 0 to 40°C, Humidity: 20 to 85%RH (no condensation) |
| Storage temperature and humidity | Temperature: -20 to 60°C, Humidity: 20 to 85%RH (no condensation) |
| Cooling method | Natural air cooling |
| Weight | 39 g max. |
| Accessories | User Manual |
