日本世界化泵YD-251GS-RD53-M43

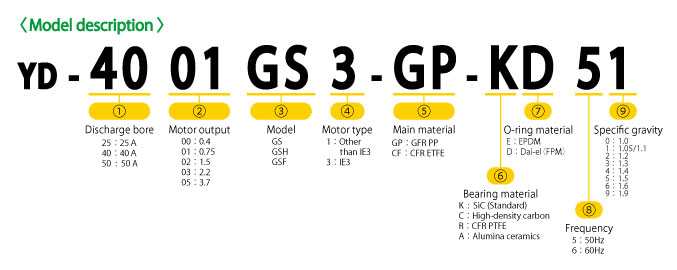

・YD-2500GS1 / GSF1・YD-2501GS3 / GSF3・YD-2502GS3 / GSF3・YD-2503GS3 / GSF3・YD-4000GS1 / GSF1・YD-4001GS3 / GSF3・YD-4002GS3 / GSF3・YD-4003GS3 / GSF3・YD-4003GSH3・YD-4005GS3 / GSF3・YD-5005GS3

FeaturesLow flow & high head ara available.Possible to select depending on the specific gravity of the liquid to use.Loose flnage is adopted for free installation.Air lock prevention is built in.Rare earth magnet is adopted for compact.Terminal box is on the top for easy wiring.Bearing is made of Sic as standard for corrosion & abrasion resistance.Examples of UseFor transferring liquid in PCB equipmentFor transferring liquid in water / air treatmentFor circulating plating liquidFor transferring chemical liquid

GS series (Main material: GRF PP)

Model	Bore (mm)		Limited S.G.	Std. performance (m_L/min.)		Output (kW)	Weight with Motor (Kg)
	Suc.	Dis.		50Hz	60Hz
YD-2500GS1	25	25	1.0	14 - 50	14 -50	0.4	19.5
			1.3	10 - 50	10.5 - 50
			1.5	9 - 50	9 - 50
YD-2501GS3			1.0	21 - 50	21.5 - 50	0.75	21.5
			1.3	17 - 50	17 - 50
			1.5	15 - 50	15 - 50
YD-2502GS3			1.0	—	34 - 50	1.5	26.5
			1.3	25.5 - 50	27 - 50
			1.5	24 - 50	25 - 50
YD-2503GS3			1.1	—	37 - 50	2.2	28.5
			1.3	—	34 - 50
			1.5	—	31 - 50

Model	Bore (mm)		Limited S.G.	Std. performance (m_L/min.)		Output (kW)	Weight with Motor (Kg)
	Suc.	Dis.		50Hz	60Hz
YD-4000GS1	40	40	1.05	11 - 100	11 - 100	0.4	16.5
			1.3	9 - 100	7.5 - 100
			1.5	7.5 - 100	—
YD-4001GS3	40	40	1.05	15 -150	15 - 150	0.75	19.5
			1.3	12 - 150	12 - 150
			1.5	10.5 - 150	10 - 150
YD-4002GS3	50	40	1.1	19 - 200	19 - 200	1.5	25.5
			1.3	17 - 200	16 - 200
			1.5	14.5 - 200	14.5 - 200
YD-4003GS3	50	40	1.1	23 - 200	25 - 200	2.2	27.5
			1.3	21 - 200	24 - 200
			1.5	19.5 - 200	20.5 - 200
YD-4003GSH3	50	40	1.1	32 - 100	33 - 100	2.2	29 (50Hz)
							27.5(60Hz)
YD-4005GS3	50	40	1.1	—	34 - 200	3.7	41.5
			1.3	—	31 - 200
			1.4	24 - 200	—
			1.5	—	28 - 200
YD-5005GS3	65	50	1.1	20 - 500	20 - 500	3.7	45.0
			1.3	18 - 500	18 - 500
			1.5	15 - 500	15 - 500

GSF series (Main material: CFR ETFE)

Model	Bore (mm)		Limited S.G.	Std. performance (m_L/min.)		Output (kW)	Weight with Motor (Kg)
	Suc.	Dis.		50Hz	60Hz
YD-2500GSF1	25	25	1.2	9 - 50	9 - 50	0.4	20.5
			1.5	7 - 50	6.5 - 50
			1.9	5.5 - 50	—
YD-2501GSF3			1.2	16.5 - 50	15 - 50	0.75	22.5
			1.5	14 - 50	—
			1.6	—	11 - 50
			1.9	11.5 - 50	—
YD-2502GSF3			1.2	24 - 50	26 - 50	1.5	28.0
			1.5	22 - 50	22 - 50
			1.9	18 - 50	18 - 50
YD-2503GSF3			1.2	—	33 - 50	2.2	30.0
			1.5	—	28 - 50
			1.9	23.5 - 50	25.5 - 50

Model	Bore (mm)		Limited S.G.	Std. performance (m_L/min.)		Output (kW)	Weight with Motor (Kg)
	Suc.	Dis.		50Hz	60Hz
YD-4000GSF1	40	40	1.2	8.5 - 100	9 - 100	0.4	17.5
			1.5	7 - 100	6 - 100
			1.9	5.5 - 100	—
YD-4001GSF3	40	40	1.2	12 - 150	11.5 - 150	0.75	20.5
			1.5	9 - 150	9 - 150
			1.9	8 - 100	9 - 100
YD-4002GSF3	50	40	1.2	18 - 200	17.5 - 200	1.5	27.0
			1.5	15 - 200	14 - 200
			1.9	12.5 - 200	10.5 - 200
YD-4003GSF3	50	40	1.2	21 - 200	22.5 - 200	2.2	29.0
			1.5	19 - 200	19.5 - 200
			1.9	15.5 - 200	15 - 200
YD-4005GSF3	50	40	1.2	—	30 - 200	3.7	43.0
			1.3	25 -200	—
			1.5	—	27.5 - 200
			1.9	—	23 - 200
